Custom hydraulic presses for your process and purpose
High thrust by hydraulic press
HIGH THRUST HOT PRESS USING HYDRAULIC PRESS CYLINDER, THRUST OF 300KN, 100KN, 60KN, 30KN, AND CUSTOM ORDERS AVAILABLE.
Diverse expandability
You can add functions to suit your needs, such as a load cell display, a buzzer that sounds when the load threshold is reached, and a lamp display.
safety
The controller incorporates a full cover, safety shutter, overheat prevention function, etc. Please refer to the hot press general catalog .

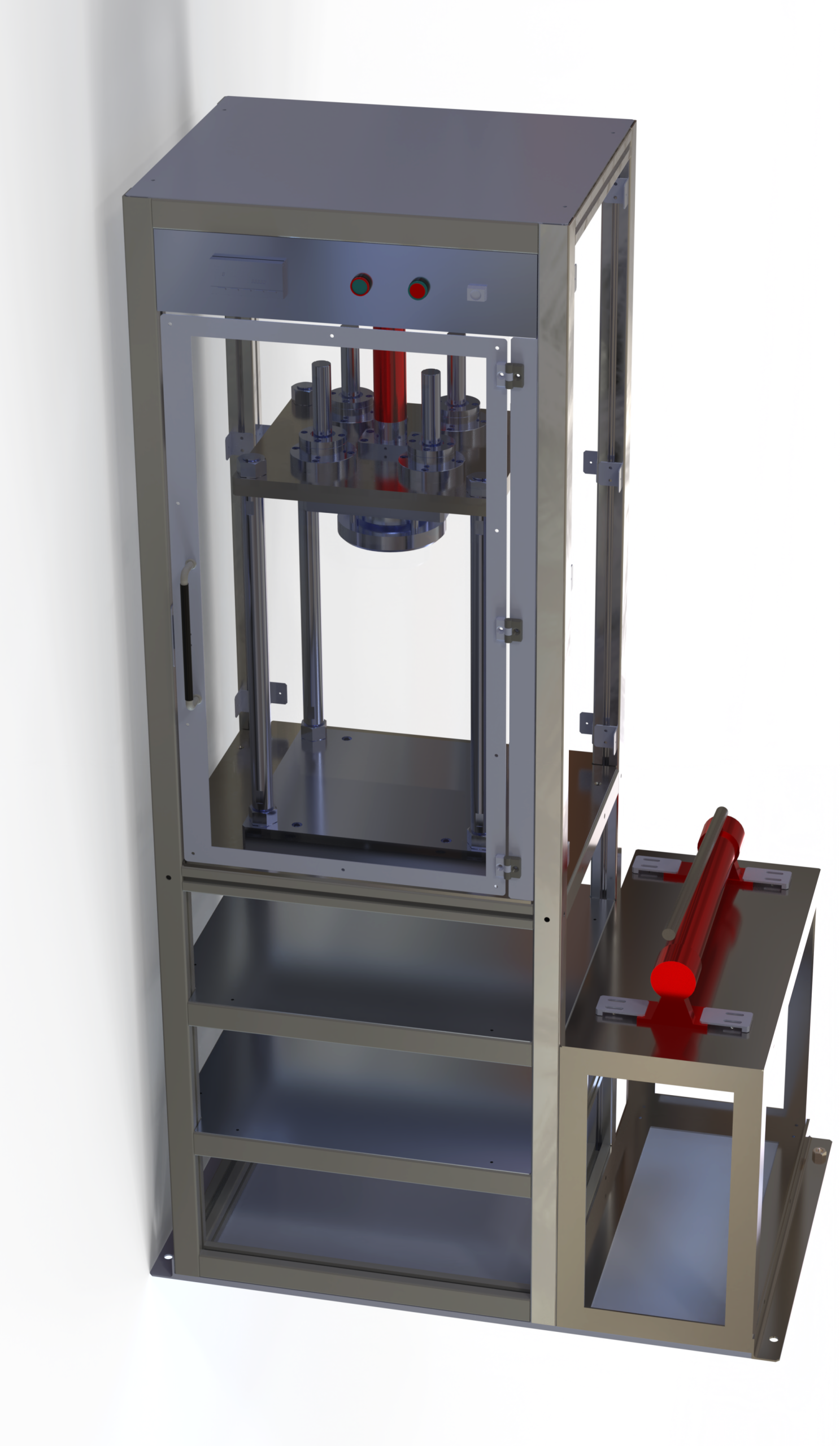

Hydraulic press with full polycarbonate (or acrylic) cover
Model list / Customization available based on hydraulic hot presses as shown below
 |
|
|
 |
|
|---|---|---|---|---|
model number |
HE6030-K, KH |
HE6060-K, KH |
HE3020-K, KH |
HE10030 |
type |
Desktop installation | Desktop installation | Desktop installation | Floor installation |
Temperature range |
Room temperature to 600℃ | Room temperature to 600℃ | Room temperature to 400°C | Room temperature to 300°C |
Plate size |
80 x 80mm | 150 x 150mm | 300×300mm | |
Plate Material |
heat-resistant superalloy | ALUMINUM ALLOY + SUS | heat-resistant alloys | |
load |
30KN | 60KN | 20KN | 100KN |
controller |
-K: No load cell (hydraulic pressure gauge)
-KH: with load cell |
Special box,
With 4 in-plane load cells |
||
Supply voltage |
AC100V | AC200V | ||
Product size |
W28×D20×H565mm | - |
W750×D500×
H1600mm
|
|
Product weight |
Approximately 35kg | Approx. 45kg | - | Approx. 100kg |
|
 |
|
 |
|
|---|---|---|---|---|
model number |
HE10400 |
HEG1530 |
HEG3030 |
HEG5030 |
type |
Floor installation | TABLETOP INSTALLATION/GB INSTALLATION | ||
Temperature range |
Room temperature to 400°C | Room temperature to 300°C | Room temperature to 300°C | Room temperature to 300°C |
Plate size |
400 x 400mm | 100 x 100mm | 100 x 100mm | 100 x 100mm |
Plate Material |
heat-resistant superalloy | |||
load |
100KN | 150KN | 300KN | 500KN |
controller |
Special box,
In-plane 4-point load cell
With
|
With load cell | ||
Supply voltage |
AC200V | AC100V | ||
Product size |
W750×D500×
H1600mm |
- | - | - |
Product weight |
Approximately 250kg | - | - | - |
 |
|
|
|
|
|---|---|---|---|---|
model number |
HEK10030 |
HEK10040 |
HEK20030 |
HEK15040 |
type |
Floor installation | |||
Temperature range |
Room temperature to 400°C | Room temperature to 300°C | Room temperature to 400°C | Room temperature to 300°C |
Plate size |
300×300mm | 400×400mm | 300×300mm | 400 x 400mm |
Plate Material |
ALUMINUM + SUPER HEAT-RESISTANT ALLOY (OR SUS) | |||
load |
100KN | 100KN | 200KN | 200KN |
controller |
Panel type, dedicated controller | |||
Supply voltage |
AC200V, φ3 (or single phase) | |||
Product size |
W690×D500×H1500mm | |||
Product weight |
Approximately 400 kg | |||
